Fclk=1;    %時鐘頻率為1Hz
Num_T=1000; %信號長度為1000個時鐘周期
Num_Data=10;  %數據線的個數10個

%%%%%%%%%%%%%%%%%%%%%%%%  fft采樣設置
Fs=100;  %采樣率為Fs
L=(Fs/Fclk)*Num_T;   %信號長度(采樣總點數)：Num_T個周期的信號，長度越長，fft精度越高，但是執行時間越長
T=1/Fs;    %采樣周期
t=(1:L)*T; %時間長度

%SIG_DATA=round(rand(Num_Data,2*Num_T));   %產生數據信號：0,1隨機分布
SIG_DATA=round(rand(Num_Data,Num_T));   %產生數據信號：0,1隨機分布
SIG_CLK=rand(1,2*Num_T);                  %產生時鐘信號
for i = 1:length(SIG_CLK)
    if mod(i,2)
        SIG_CLK(i)=1;
    else
        SIG_CLK(i)=0;
    end
end

N=length(t);
LEN_CLK=zeros(1,N);  %定義時鐘信號采樣序列
LEN_DATA=zeros(Num_Data,N); %定義數據信號采樣序列
for i=1:N
        LEN_CLK(i)=SIG_CLK(ceil(i/((Fs/Fclk)/2)));    %時鐘信號的采樣序列
        for j=1:Num_Data
%             LEN_DATA(j,i)=SIG_DATA(j,ceil(i/((Fs/Fclk)/2)));   %數據信號的采樣序列
            LEN_DATA(j,i)=SIG_DATA(j,ceil(i/(Fs/Fclk)));   %數據信號的采樣序列
        end
end

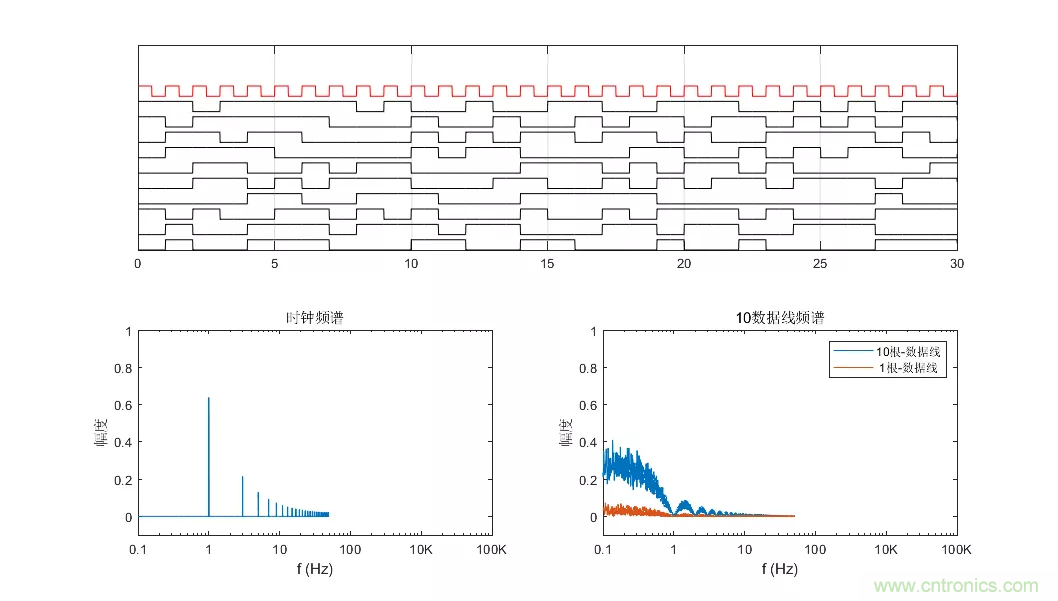

figure;
subplot(2,2,[1 2]);
plot(t,LEN_CLK+1.5*Num_Data,''''r'''');      %畫出30個時鐘周期時鐘信號
set(gca,''''XLim'''',[0 30]);%x軸的數據顯示范圍,0-30

set(gca,''''ytick'''',[]);
grid on;
hold on
for j=1:Num_Data
    plot(t,LEN_DATA(j,:)+(j-1)*1.5,''''k'''');
    hold on
end

X_LEN_CLK=abs(fft(LEN_CLK));
subplot(2,2,3);
semilogx(Fs*(0:(L/2))/L,X_LEN_CLK(1:L/2+1)*2/L);
set(gca,''''XLim'''',[0.1 10000]);%x軸的數據顯示范圍
set(gca, ''''XTickLabel'''' ,{''''0.1'''',''''1'''',''''10'''',''''100'''',''''10K'''',''''100K''''}); %x軸頻率數據
title(''''時鐘頻譜'''');
set(gca,''''YLim'''',[-0.1 1]);
xlabel(''''f (Hz)'''');
ylabel(''''幅度'''');

X1_LEN_DATA= abs(fft(LEN_DATA(1,:)));
X_LEN_DATA = abs(fft(LEN_DATA(1,:)));
for j=2:Num_Data
    X_LEN_DATA = abs(fft(LEN_DATA(j,:)))+X_LEN_DATA;
end

subplot(2,2,4);
semilogx(Fs*(0:(L/2))/L,X_LEN_DATA(1:L/2+1)*2/L,Fs*(0:(L/2))/L,X1_LEN_DATA(1:L/2+1)*2/L);
legend(['''''''',num2str(Num_Data),''''根-數據線''''],['''' 1根-數據線'''']);
set(gca,''''XLim'''',[0.1 10000]);%x軸的數據顯示范圍
set(gca, ''''XTickLabel'''' ,{''''0.1'''',''''1'''',''''10'''',''''100'''',''''10K'''',''''100K''''}); %x軸頻率數據
title(['''''''',num2str(Num_Data),''''數據線頻譜'''']);
set(gca,''''YLim'''',[-0.1 1]);
xlabel(''''f (Hz)'''');
ylabel(''''幅度'''');
